Control

Friendly HMI for operation.

The side panel digital display is automatic (entered into the order management system), and the front panel and lifting/lifting of the cardboard box are electrically adjusted. The side panel is equipped with an automatic alignment device.

PLC match with Touch Screen for operation, control panel is

in the left side of machine for easy operate.

Main Motor

The Main Motor adopts  frequency motor, stable and durable.

The drive shaft adopts pneumatic brake device to avoid

machine damage caused by failure operate.

Lead edge feeder

Servo Control non-crush feeder,

4 shafts transmission.

Continuously or Skip Feeding

Paperboard leading edge as the positioning benchmark, in line with printing, slotting, die-cutting positioning benchmark, to

improving paper feeding and printing accuracy.

High ability for feeding Bending,Wrapping and Thin cardboard.

Servo Control

Non-crush

Feeding System (4 groups of

Servo Motors)

 To compare with Traditional feeding rollers, non-crush feeder

does not damage the strength of the cardboard, save materials.

 Improve the feeding accuracy, even running at high speed will

not affect the feeding accuracy.

Any flute type above F flute can be feed horizontally and vertically.

Dust Remove

Suction for dust remove, dust collection tube, to remove the

dust and scraps effectively.

More wider contact area, even no need to clean the printing plate for work a half day.

Suction

turbine fan, air volume frequency control

(stepless knob adjustment), precise control and easy to adjust

 To compare with ordinary high-flow fans, power save and lessnoise.

The suction range is automatically adjusted. (varies with the width of the cardboard).

Move

Motorized control the movement of Unit open and close with alarm sounds and lights, reducer motor increase the torsion

and equipped with overload clutch to avoid damage the

moving device equipped with limit clutch for avoiding any damage of rail.

Left and right baffle

Left and right baffle servo motor adjustment

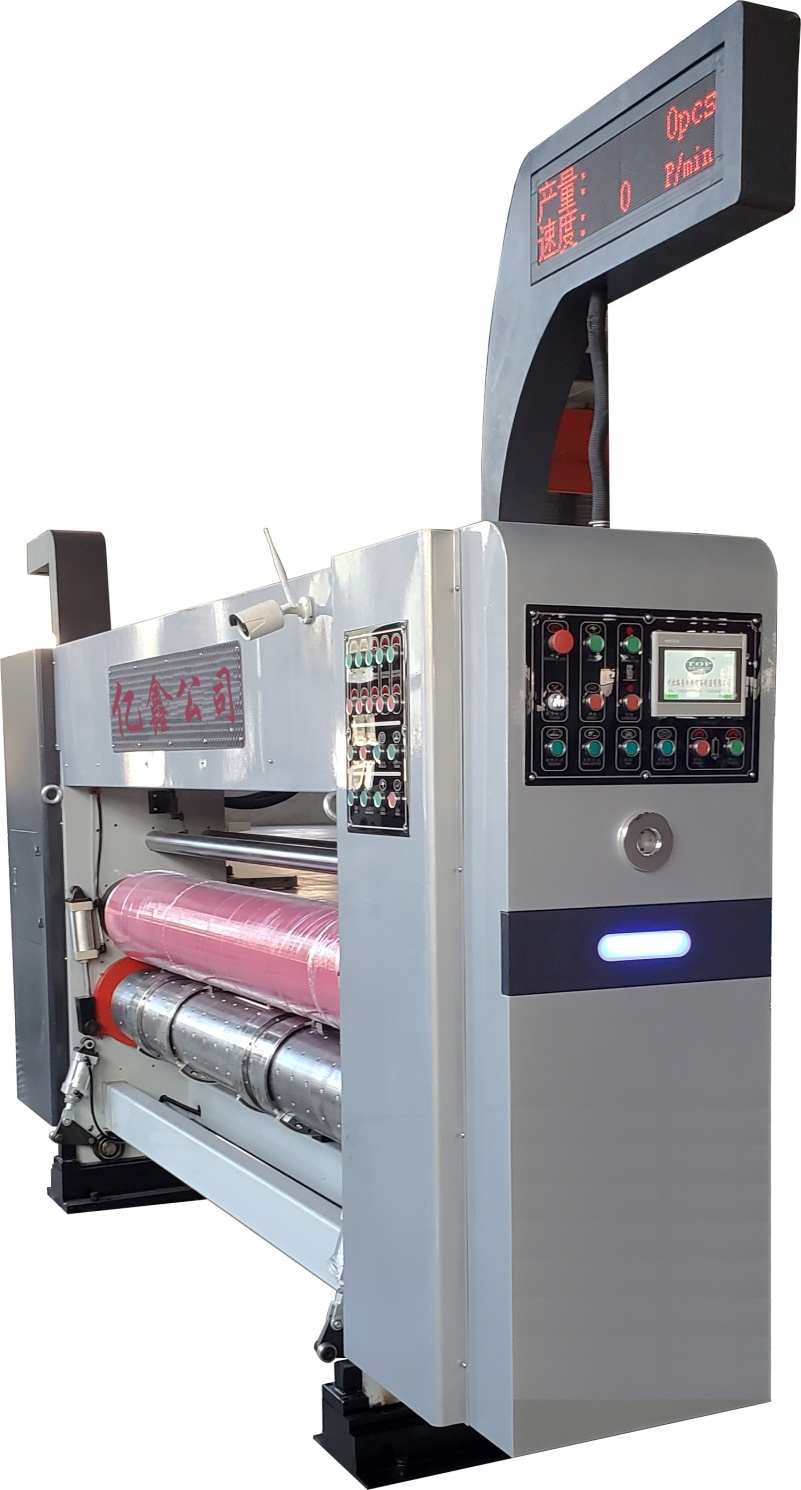

Control

Friendly HMI for operation.

Register Servo Control.

Printing Cylinder transverse move, motorized control with

digital display +5mm.

Synchronous digital display automatic lifting of printing press roller, conveyor wheel and suction box, with an adjustment range of 0-11mm

Printing Cylinder

The Printing Cylinder is made of seamless steel pipe with hard

chromium plating on the surface and tempering on the shaft

core so that it has strong fatigue resistance and toughness.

Printing Cylinder diameter：

Balance correction and adjusting, stable running.

 Use ratchet fixed type for mounting printing plate, printing plate can be

right and left alignment, increase the accuracy of hanging plate.

Full plate hanging slot, suitable for 3 x10mm hanging plate.

When mounting and disassemble the printing plate, the pedal switch can be used to control the positive and negative rotation.

Equipped with safety control button (to avoid safety risks caused by mounting, cleaning and disassemble the printing plate).

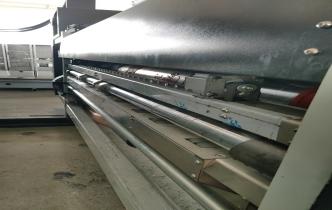

Vacuum Transfer

The surface of alloy cast aluminum

transfer wheel is sprayed with

wear-resistant ceramic layer to

reduce load, increase friction, and

prolong life time.

Electric automatic opening, pneumatic control of air flow gate.

Oil nozzle distributor single hole outlet, built-in distribution line to ensure butter can be injected and lubricated to each

bearing.

Turbine fans  To compare with ordinary high-flow fans, power save and

 less noise.

The turbine fan is frequency control, it’s ON/OFF

Rubber Roller

The Rubber Roller adopts high quality seamless steel pipe, the hot sleeve process of shaft head, naturally tight ,

and deep tempering, balance correction, smooth operation.

Surface covered with wear-resistant rubber, and roller high is parabola form, after special grinding, to ready a good ink

transfer effect.

When the main machine stops, the rubber roller adopts

reducer motor for synchronous self-running.

Fast assemble / disassemble device for future quickly replace.

Steel anilox roller

The steel anilox Roller adopts high quality seamless steel pipe,

shaft head hot sleeve process, natural tight, and do deep conditioning treatment, Precision grinding.

With delay function, it can automatically rise and fall

according to cardboard feeding situation, and easy to operate.

Fast assemble / disassemble device for future quickly replace

Doctor Blade

(Optional)

Chambered Doctor Blade System

is used to ensure ink is

well-distributed and stable printing

quality, eliminates the color difference that cased by high-speed centrifugal change when use Rubber Roller.

Using the oil-to-air scraper system to make the ink more

uniform and adjust the contact pressure between the blade and

the anilox roller to reduce the wear of the anilox roller.

Nylon doctor blade is used to reduce worn of Ceramic Roller.

Using closed scraper system with  two-way ink pump and high-pressure rapid spray washing device can

greatly save ink and cleaning time.

Scraper cavity sprayed with "Teflon", to avoid ink silt.

Quick-change blade, easy maintain.

Quick manual operation of scraper seat positioning and separation

Ceramic  anilox Roller

(Optional)

The Ceramic Roller adopts high quality seamless steel pipe,

shaft head hot sleeve process, natural tight, and do deep conditioning treatment, surface high temperature,

high pressure spray ceramic layer. Precision grinding, service

life is 3 times longer than steel anilox roller.

Precision laser engraving mesh, uniform inking, 250-700LPI.

Balance correction, stable running.

With delay function, it can automatically rise and fall

according to cardboard feeding situation, and easy to operate.

Fast assemble / disassemble device for future quickly replace

Register Control

The phase adjustment adopts a servo motor double arm planetary gear differential structure, with adjustable clearance to ensure more precise transmission. It can be precisely adjusted 360 °, which is convenient, stable and reliable.

The phase, printing reference position, and paper gap can be automatically adjusted through order management. Register,

The phase fixing adopts an electromagnetic brake mechanism. When the machine separates or adjusts the phase, the brake mechanism restricts the rotation of the machine and keeps the position of the printing plate fixed.

Ink Supply

Adopting bidirectional pneumatic diaphragm pump circulation supply, stable ink supply, easy operation, and simple maintenance.

The ink bucket is made of stainless steel material, which is durable and long-lasting.

Pulling paper wheel

The paper wheel servo adjustment is convenient and fast.

During use, paper feeding can be carried out normally without turning on the fan, saving energy and reducing emissions.

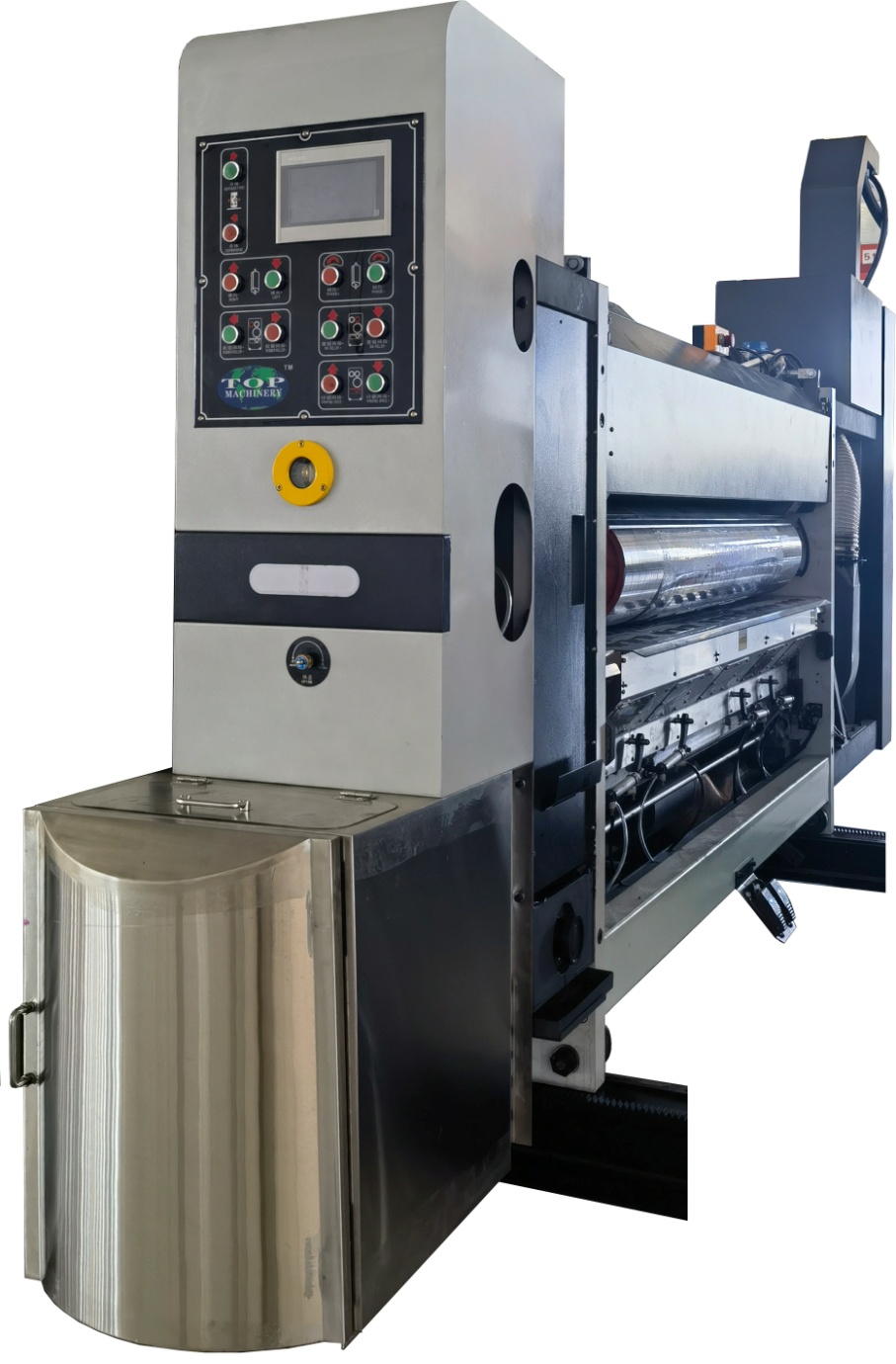

Control

Friendly HMI for operation.

Register Servo Control.

Die-cutting cylinder gap motorized control with digital display, range 0- 15mm.

Anvil Cylinder

Die-cutting anvil cylinder is made of seamless steel tube,

balance correction, tempering treatment, surface grinding and

hard chrome plating.

Die-cutting anvil cylinder diameter:

The surface is wrapped with excellent anvil cover, which is

installed with buckle structure, easy to replace.

Die-cutting anvil cylinder adopt mechanical differential

structure to make the left and right automatic transversal, the transversal range is ±30 mm, can make anvil cover wear

evenly, prolong the service life

Die-cutting anvil cover is equipped with automatic grinding device, so that the anvil cover can be grinding many times,

repeated use.

Wooden Cylinder

Wooden cylinder is made of seamless steel tube, balance    correction, tempering treatment, surface grinding and hard

chrome plating.

Wooden cylinder diameter:

Wooden Cylinder is engraved with horizontal and vertical

lines, with M8 screw hole, international standard.

Adopt standard height H24mm, make it easy to manufacture

and install quickly.

Lighting lamp is installed especially for night work

Upper/Lower   Guiding Roller

The upper guiding roller is made of l, with two   pieces of guiding wheels, rack-type quick moving model.

Lower roller surface grinding and hard chromium plating,

balance correction, stable running.

Upper and Lower Guiding Roller gap is motorized control with digital display.

Register

Register adjustment adopts servo motor dual-pole

adjustable gap planetary gear with 360° precision adjustment.

Register adjustment by an independent PLC, touch screen operates, and gap is motorized control with digital display

(Order Management).

The Register fixing adopts electromagnetism brake device. When the units

open or adjusts the register, the braker system limits the  rotation of the machine and keeps the wooden die position fixed.
